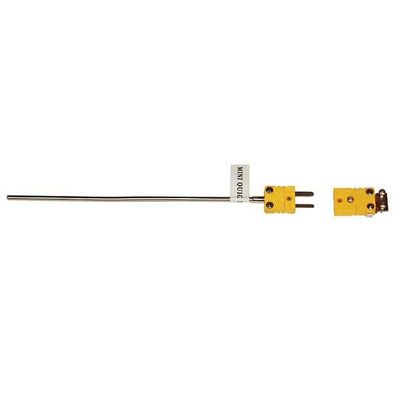

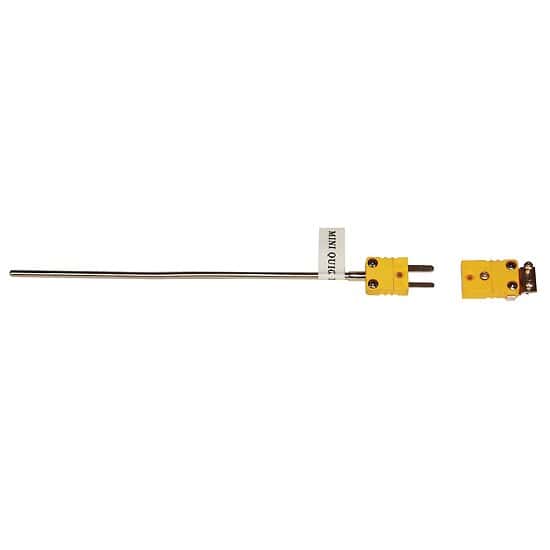

Digi-Sense Inconel Type K Thermocouple Probe, Quick Dis-connector, 12 in. L x 3/16 in. Dia, Grounded - 18524-07

Item #:

DS-18524-07

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

18524-07 Inconel Type K Thermocouple Probe, Quick Dis-connector, 12" L x 3/16" Dia, Grounded by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C)

Ideal for measuring liquids, gases, or semi solids
Designed with ICONEL 600 sheath
Response Time: 1.2 - 5 seconds or greater
Includes a stand alone female connector for instalation to a thermocouple extension cable
Each probe comes with a color coded ANSI dual standard connector: type J-black, type K-yellow, type T-blue, and type E-purple.
Custom designs or changes to this product are available upon request.

Specifications

Length (")	12
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1650
Min Temperature (° C)	-150
Max Temperature (° C)	1100
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Grounded
Connector Type	Mini Connector
Sheath material	Inconel®
Sheath Length (in)	12
Sheath Diameter (in)	0.1875
Description	Inconel Type K Thermocouple Probe Probe, Quick Disconnect, 12" Lx3/16" Dia, Grounded
