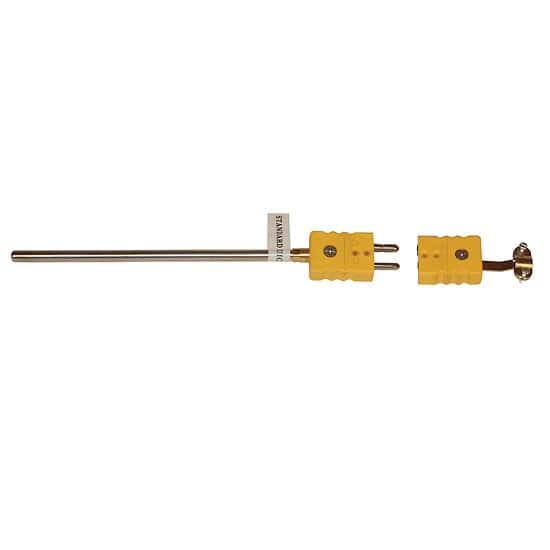

Digi-Sense Type K Thermocouple Quick Dis-connector, with Std-Connector, 12 in. L, .188 Dia. Grounded Junction - 18523-76

Item #:

DS-18523-76

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

18523-76 Type K Thermocouple Quick Dis-connector, with Std-Connector, 12" L, .188 Dia. Grounded Junction by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C)

Ideal for measuring liquids, gases, or semi solids
Designed with 316 Stanless Steel sheath
Response Time: 1.2 - 5 seconds or greater
Includes a stand alone female connector for instalation to a thermocouple extension cable
Each probe comes with a color coded ANSI dual standard connector: type J-black, type K-yellow, type T-blue, and type E-purple.
Custom designs or changes to this product are available upon request.

Specifications

Length (")	12
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1650
Min Temperature (° C)	-150
Max Temperature (° C)	899
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Grounded
Connector Type	Standard Connector
Sheath material	316 Stainless Steel
Sheath Length (in)	12
Sheath Diameter (in)	0.1875
Description	Type K Thermocouple Quick Disconnect, with Std Con, 12" L, .188 Dia. Grn Jct
