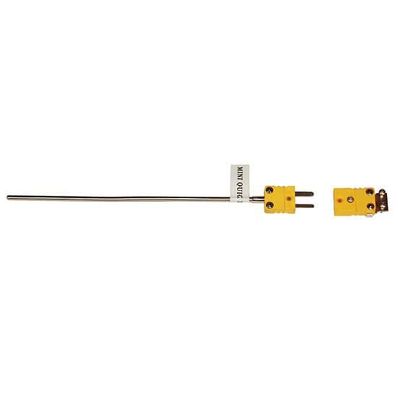

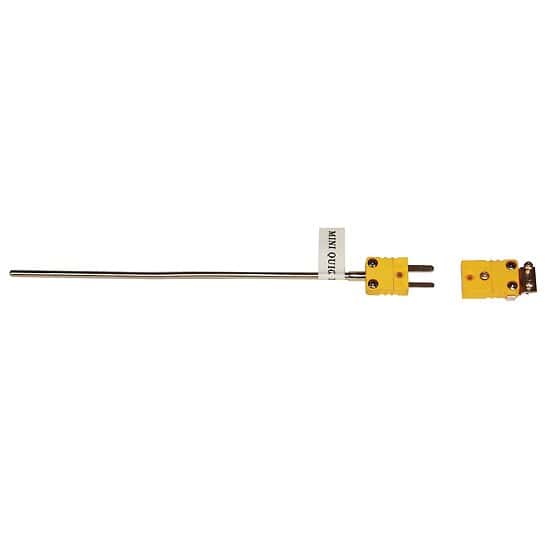

Digi-Sense Inconel Type K Thermocouple Probe, Quick Dis-connector, 6 in. L x 1/8 in. Dia, Exposed - 18523-47
Item #:
DS-18523-47
Brand:
Digi-Sense
Share this product:
18523-47 Inconel Type K Thermocouple Probe, Quick Dis-connector, 6" L x 1/8" Dia, Exposed by Digi-Sense
The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C)
- Ideal for continuous monitoring
- Designed with ICONEL 600 sheath
- Response Time: 1.2 - 5 seconds or greater
- Includes a stand alone female connector for instalation to a thermocouple extension cable
- Each probe comes with a color coded ANSI dual standard connector: type J-black, type K-yellow, type T-blue, and type E-purple.
- Custom designs or changes to this product are available upon request
| Length (") | 6 |
| Probe Type | K |
| Min Temperature (° F) | -250 |
| Max Temperature (° F) | 572 |
| Min Temperature (° C) | -150 |
| Max Temperature (° C) | 300 |
| Temperature Accuracy | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Junction | Exposed |
| Connector Type | Mini Connector |
| Sheath material | Inconel® |
| Sheath Length (in) | 6 |
| Sheath Diameter (in) | 0.125 |
| Description | Inconel Type K Thermocouple Probe Probe, Quick Disconnect, 6" Lx1/8" Dia, Exposed |
