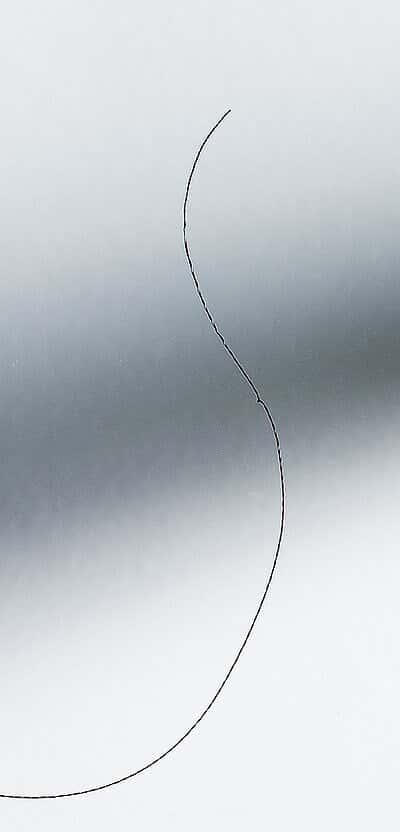

08506-75 Type T Fine -Gauge PTFE-Insulated Thermocouple Probe by Digi-Sense

All insulated-wire probes include straight insulated cable with no handle and feature ANSI color-coded miniconnectors: type T-blue. This is a fine-gauge PTFE-insulated probe, with a 0.025" outer diameter and is 3-ft long. This is a tissue implantable microprobe, ideal for semisolids.

Ideal for chemical resistant applications

Includes

five 18-gauge hypodermic needles.

Specifications

Probe Type	T
Min Temperature (° F)	-418
Max Temperature (° F)	302
Min Temperature (° C)	-250
Max Temperature (° C)	150
Time Constant	0.1 second
Response Time (Sec)	0.5
Junction	Ungrounded
Connector Type	Mini Connector
Sheath material	PTFE Insulated Wire
Sheath Diameter (in)	0.024
Description	Type T Fine-Gauge PTFE-Insulated Thermocouple Probe
