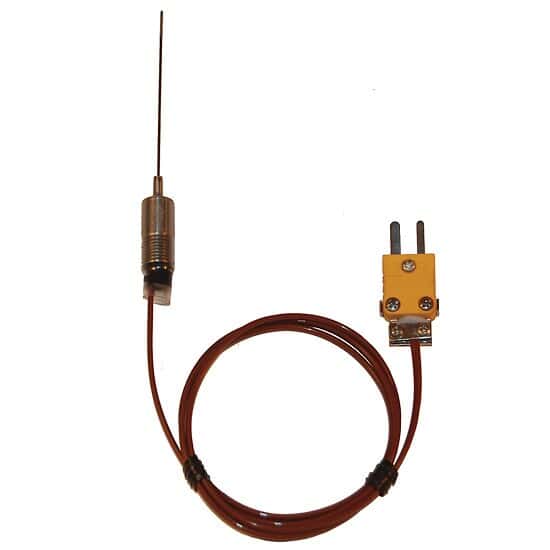

Digi-Sense Type K Small-Diameter Hypodermic Thermocouple Probe, 4.75 in. L/0.040 in. Dia - 08505-99
Item #:
DS-08505-99
Brand:
Digi-Sense
Share this product:
08505-99 Type K Small-Diameter Hypodermic Thermocouple Probe, 4.75" L/0.040" Dia by Digi-Sense
The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).
- Ideal For Checking Food Temperatures
- Response Time: 0.5 -1.2 seconds or greater
- Probe comes with Stainles Steel Handle
- Each probe comes with color coded ANSI miniconnectors: type J-black, type K-yellow, and type T-blue.
- Custom designs or changes to this product are available upon request
Length (") | 4 3/4 |
Probe Type | K |
Min Temperature (° F) | -418 |
Max Temperature (° F) | 600 |
Min Temperature (° C) | -250 |
Max Temperature (° C) | 315 |
Time Constant | 1 second |
Response Time (Sec) | 5 |
Junction | Grounded |
Connector Type | Mini Connector |
Sheath material | 316 Stainless Steel |
Sheath Length (in) | 4.75 |
Sheath Diameter (in) | 0.04 |
Description | Type K Small-Diameter Hypod ermic Thermocouple Probe Probe, 4.75" L/0.040" Dia |
