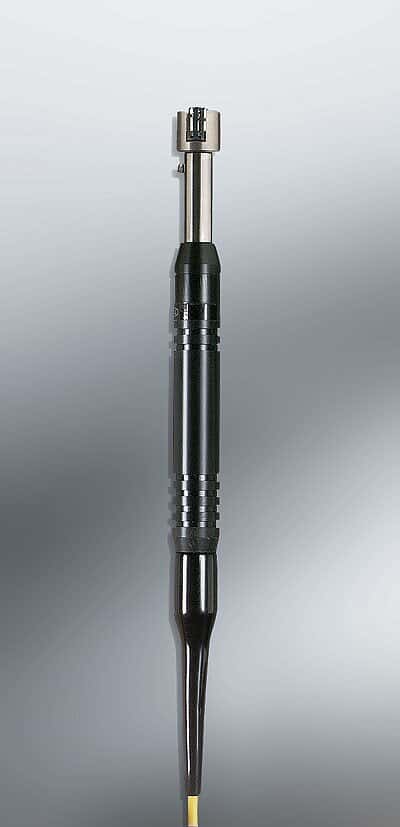

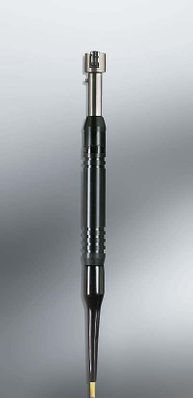

Digi-Sense Type-K SS Str Guard Surf Probe; 6.5 in. L, Mini-Connector, Exposed, 3ft FEP Cable - 08447-21

Item #:

DS-08447-21

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

08447-21 Type-K SS Str Guard Surf Probe; 6.5" L, Mini-Connector, Exposed, 3ft FEP Cable by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Ideal for monitoring flat surfaces such as hot plates, furnaces, or molds
Each probe comes with a stainless steel guard for durable construction that offers a fast accurate reading
Response Time: .75 seconds or greater
Each probe comes with a color coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple.
Custom designs or changes to this product are available upon request

Specifications

Length (")	6 1/2
Probe Type	K
Min Temperature (° F)	-328
Max Temperature (° F)	932
Min Temperature (° C)	-200
Max Temperature (° C)	500
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Exposed
Connector Type	Mini Connector
Sheath material	304 Stainless Steel Shaft w/Stainless Steel Guard
Handle Material	Delrin
Sheath Length (in)	6.5
Cable Length (in)	36
Description	Type-K SS Str Guard Surf Probe; 6.5" L, Mini Con, Exp, 3ft FEP Cable
