Digi-Sense Rolling Wheel Surface Thermocouple Probe, Exposed; Type K - 08445-31
Item #:
DS-08445-31
Brand:
Digi-Sense
Share this product:

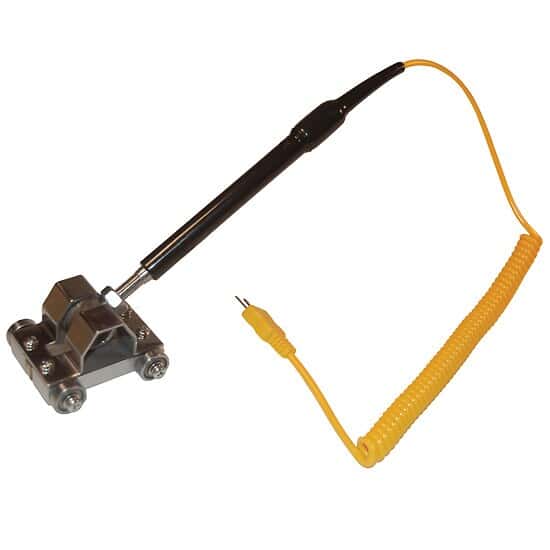

08445-31 Rolling Wheel Surface Thermocouple Probe, Exposed; Type K by Digi-Sense
The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).
- Use to monitor hot plates, furnaces, molds, or any other flat surface
- Ideal for rotary or other moving surfaces
- Response Time: 2 seconds or greater
- Each probe comes with a color coded ANSI coiled cables or connectors: type J-black, type K-yellow, type T-blue, and type E-purple.
- Custom designs or changes to this product are available upon request
| Length (") | 2 13/32 |
| Probe Type | K |
| Min Temperature (° F) | -250 |
| Max Temperature (° F) | 450 |
| Min Temperature (° C) | -150 |
| Max Temperature (° C) | 232 |
| Temperature Accuracy | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Junction | Exposed |
| Sheath material | 304 Stainless Steel with PTFE Guard |
| Handle Material | PVC |
| Sheath Length (in) | 2.4062 |
| Description | Rolling Wheel Surface Thermocouple Probe, Exposed; Type K |
