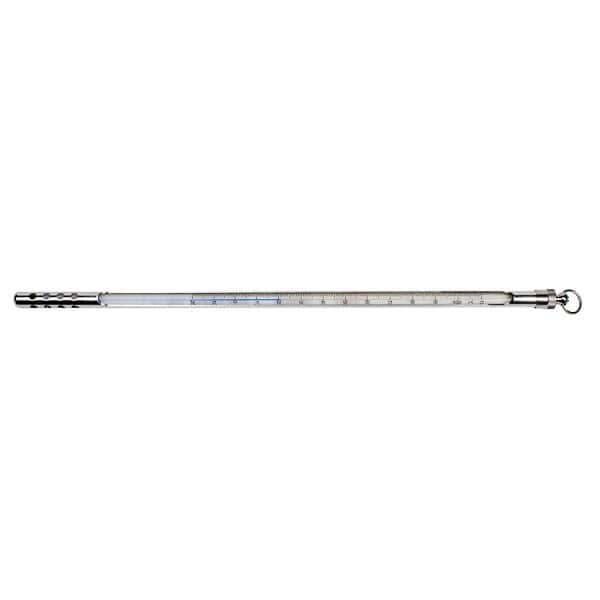

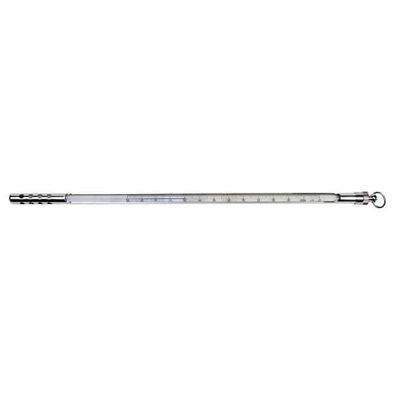

Digi-Sense Armored Liquid-In-Glass Thermometer; -10 to 260C, 76mm Immersion, Organic Liquid Fill - 08077-97

Item #:

DS-08077-97

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

08077-97 Armored Liquid-In-Glass Thermometer; -10 to 260C, 76mm Immersion, Organic Liquid Fill by Digi-Sense

Ideal for use in application where thermometers needs added protection from minor shocks. Nickel/plated brass armor shell protects these thermometers from accidental breakage during use and storage. The armor case has a screw cap with ring top and viewing window; the lower section that surrounds the bulb has small openings for circulation.

Thermometers feature permanently fused markings, blue spirit liquid, white background glass; are also individually serial numbered. Include an statement of accuracy and a triangular-style antiroll fitting.

Armor shell absorbs shock and prevents thermometer damage

Nonmercury blue spirit liquid
Statement of accuracy included

Specifications

Length (")	14
Min Temperature (° C)	-10
Max Temperature (° C)	260
Accuracy	±2.0°C; ±2.5°C between 100°C and 200°C; ±3.0°C between 200°C and 230°C; ±3.5°C above 230°C
Division (° C)	1
Thermometer Fill	Blue Spirit
Dial / Case Material	Nickel Plated Brass
Overall Length (in)	14
Overall Length (mm)	350
Immersion Depth (mm)	76
Stem Material	White-Back Glass
Description	Armored Liquid-In-Glass Thermometer; -10 to 260C, 76mm Immersion, Organic Liquid Fill
