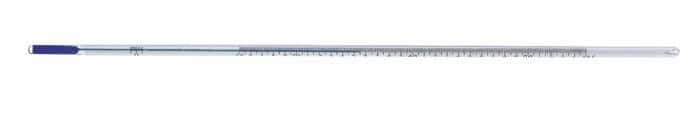

Digi-Sense ASTM Like Liquid-In-Glass Thermometer, 86F / Fuel Rating, Mix, 35mm Immersion, 200 to 350F, Organic Liquid Fill - 08009-48
Item #:
DS-08009-48
Brand:
Digi-Sense
Share this product:
08009-48 ASTM Like Liquid-In-Glass Thermometer, 86F / Fuel Rating, Mix, 35mm Immersion, 200 to 350F, Organic Liquid Fill by Digi-Sense
These thermometers are precision manufactured to conform to ASTM E-1 specifications except for not being mercury filled. Designed for use in quality control laboratories or when mercury filled thermometers can not be used but where ASTM standards are still needed. ASTM established thermometer standards suited for special applications, and assigned an ASTM number according to each specification.
Thermometers feature permanently fused markings, blue spirit liquid, white background glass; are also individually serial numbered.
- Designed for specific ASTM (American Society for Testing and Materials) test methods
- Nonmercury blue spirit liquid
Length (") | 6 19/32 |
Min Temperature (° F) | 200 |
Max Temperature (° F) | 350 |
Accuracy | ±3.0°F |
Division (° F) | 2 |
Thermometer Fill | Blue Spirit |
Overall Length (in) | 6.6 |
Overall Length (mm) | 167 |
Immersion Depth (mm) | 35 |
Stem Material | White-Back Glass |
ASTM Number | 86F |
Description | ASTM Like Liquid-In-Glass Thermometer, 86F / Fuel Rating, Mix, 35mm Immersion, 200 to 350F, Organic Liquid Fill |
