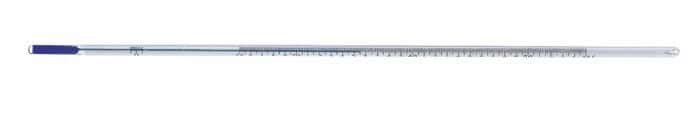

Digi-Sense ASTM Like Liquid-In-Glass Thermometer; 1C / Partial Immersion 76mm, -20 to 150C, Organic Liquid Fill - 08009-01

Item #:

DS-08009-01

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

08009-01 ASTM Like Liquid-In-Glass Thermometer; 1C / Partial Immersion 76mm, -20 to 150C, Organic Liquid Fill by Digi-Sense

These thermometers are precision manufactured to conform to ASTM E-1 specifications except for not being mercury filled. Designed for use in quality control laboratories or when mercury filled thermometers can not be used but where ASTM standards are still needed. ASTM established thermometer standards suited for special applications, and assigned an ASTM number according to each specification.

Thermometers feature permanently fused markings, blue spirit liquid, white background glass; are also individually serial numbered.

Designed for specific ASTM (American Society for Testing and Materials) test methods
Nonmercury blue spirit liquid

Specifications

Length (")	12 45/64
Min Temperature (° C)	-20
Max Temperature (° C)	150
Accuracy	±1.0°C; ±1.5°C above 100°C
Division (° C)	1
Thermometer Fill	Blue Spirit
Overall Length (in)	12.7
Overall Length (mm)	322
Immersion Depth (mm)	76
Stem Material	White-Back Glass
ASTM Number	1C
Description	ASTM Like Liquid-In-Glass Thermometer; 1C / Partial Immersion 76mm, -20 to 150C, Organic Liquid Fill
