Apera Premium Series PH8500-HT Portable pH Meter for High Temperature Liquid and Caustic Solutions with GLP Data Logger - AI5566

Item #:

AI5566

Brand:

Apera Instruments

Our tech experts are ready to help!

Share this product:

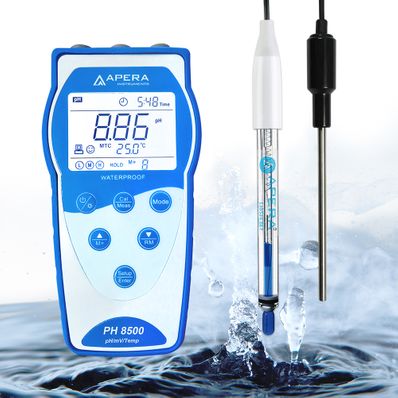

AI5566 Premium Series PH8500-HT Portable pH Meter for High Temperature Liquid and Caustic Solutions with GLP Data Logger by Apera

Equipped with Swiss LabSen 861 pH Electrode for high-temp liquid and caustic solutions
GLP standard data management, 500 data sets of storage, manual/auto storage, USB data output
Intelligent Functions: Self-Diagnosis of out-of-range value and electrode invalidation, auto. calibration, electrode slope display, Auto. power-off, easy parameter setting
Rugged Structure Design: IP57 waterproof rating; Soft silicone case gives you a firm and comfortable grip
Powered by AA batteries

Technical Specs
pH	Range: 0 to 14 pH Resolution: 0.01/0.1 pH Accuracy: ±0.01 pH ±1 digit Temperature Compensation: 0 to 100°C (Auto or Manual)
mV	Range: -1000 mV - 0 - 1000 mV Resolution: 1 mV Accuracy: ±0.2% F.S ±1 digit
Temp.	Range: 0 to 100°C (23 to 212°F) Resolution: 0.1°C Accuracy: ±0.5°C ±1 digit
Other Specs
Data Storage	500 sets
Storage Content	Numbering, date, time, measurement, unit, temperature
Output	USB
Power	AA Batteries * 3 / DC5V (USB port)
IP Ranking	IP57 dust-proof and waterproof
Dimensions & Weight	Meter: (88_170_33 ) mm/ 313g With case: (360_270_76) mm/ 1.6kg
pH Electrode (LabSen 861) Specs
Housing Material	Lead-free glass
Temperature sensor	N/A
Junction	PTFE ring
Reference Electrode	Silver-ion-trap Reference System
Electrolyte	3M KCL
Shape of glass membrane	Cylindrical PHY
Range	1 to 13 pH
Temperature Range	0 to 130°C
Connector	BNC
