Testo 883 - Kit TI (27Hz, with laser, wWCR) (incl. standard lens 30° x 23°, Telephoto lens 12° x 9°, Li-ion rechargeable battery, Spare rechargeable battery, Battery-charging station with USB cable, Carrying strap for the thermal imager) - 0563 8830

Item #:
0563-8830
Brand:
Testo
Testo 883 - Kit TI (27Hz, with laser, wWCR) (incl. standard lens 30° x 23°, Telephoto lens 12° x 9°, Li-ion rechargeable battery, Spare rechargeable battery, Battery-charging station with USB cable, Carrying strap for the thermal imager) - 0563 8830
$7,099.00
Qty
Ask a Question
Send This Page to a Friend
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Testo 883 - Kit TI (27Hz, with laser, wWCR) (incl. standard lens 30° x 23°, Telephoto lens 12° x 9°, Li-ion rechargeable battery, Spare rechargeable battery, Battery-charging station with USB cable, Carrying strap for the thermal imager) - 0563 8830

Testo 883 - Kit TI (27Hz, with laser, wWCR) (incl. standard lens 30° x 23°, Telephoto lens 12° x 9°, Li-ion...

$7,099.00

0563 8830 883 - Kit TI (27Hz, with laser, wWCR) (incl. standard lens 30° x 23°, Telephoto lens 12° x 9°, Li-ion rechargeable battery, Spare rechargeable battery, Battery-charging station with USB cable, Carrying strap for the thermal imager) by Testo

The perfect kit for thermal imaging: The testo 883 thermal imager features the best image quality, plus useful features for image management, contrast adjustment, and documentation. Enjoy all the benefits that the kit offers: Thanks to the 12° x 9° telephoto lens, spare battery, and battery-charging station, you'll be ready to start right away and ideally equipped – even for carrying out measurements at greater distances and for long measuring applications

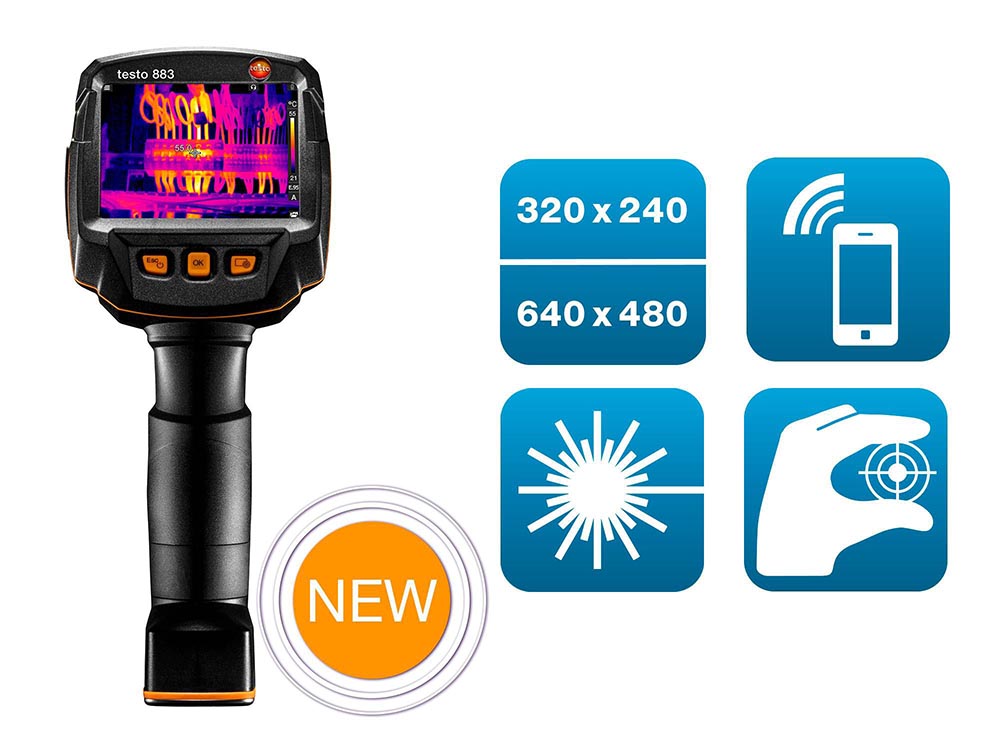

  • Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 × 480 pixels)
  • Thermal sensitivity <0.04 °C
  • In the kit: testo 883 thermal imager including standard lens 30° x 23°, telephoto lens 12° x 9°, spare battery, battery-charging station and case
  • Free analytical software for creating professional reports
  • Measurement site recognition and automatic image management
  • App for analysis and creating on-site measurement reports

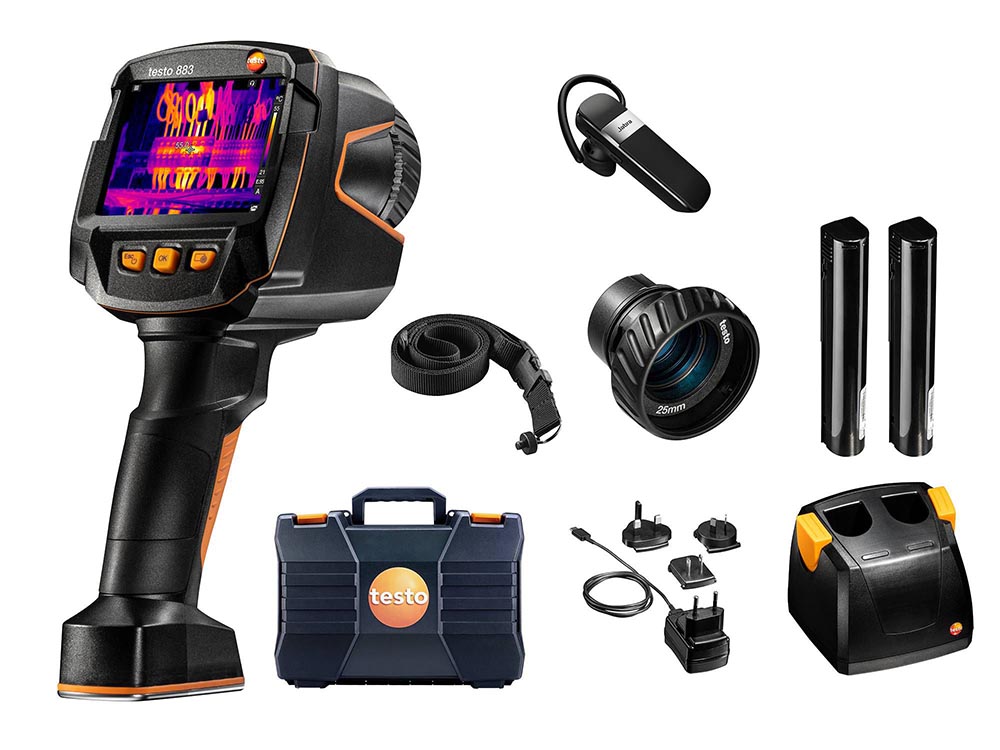

Includes:

  • testo 883 thermal imager with standard lens 30° x 23°
  • Telephoto lens 12° x 9°
  • Rugged case
  • testo IRSoft Professional software (free download)
  • USB-C cable
  • AC Power Adapter (USB)
  • Li-ion rechargeable battery
  • Spare rechargeable battery
  • Battery-charging station with USB cable
  • Carrying strap for the thermal imager
  • Bluetooth® headset (depending on the country)
  • Short instructions
  • Certificate of Conformity
testo 883 - Thermal imager (320 x 240 pixels, manual focus, app, laser)
Standards and warranty
EU-/EG-guidelines RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006
General technical data
Product colour Black
Display type capacitive touch display
Display ligthing bright / normal / dark
Infrared image output
Infrared resolution 320 x 240 pixel
Thermal sensitivity < 40 mK
Field of view 30° x 23° (Standard lens), 12° x 9° (Telephoto lens)
Minimum focus distance < 0.1 m (Standard lens)
Geometric resolution (IFOV) 1.7 mrad (standard lens), 0.7 mrad (telephoto lens)
SuperResolution (Pixel) 640 x 480 pixels
SuperResolution (IFOV) 1.1 mrad (Standard lens), 0.4 mrad (Telephoto lens)
Image refresh rate 27 Hz
Focus manual
Spectral range 7.5 to 14 µm
Image output visual
Image size 5 MP
Minimum focus distance < 0.4 ft. / < 0.4 m
Image presentation
Display type 8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
Digital zoom 2x; 4x
Display option IR image / real image
Color palettes iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
Measurement
Measuring range -30 to +650°C
Accuracy ±2 °C, ±2 % of m.v.; (greater value applies)
Emissivity 0.01 to 1
Reflected temperature manual
testo ε-Assist Included
Measuring function
Solar mode Input of solar radiation value
Analysis function Up to 5 selectable individual measuring points, hot/cold spot detection, Delta T, area measurement (min/max on area), alarms, isotherm
Electrical mode - manual Input of current, voltage or power
IFOV warner Included
Humidity mode - manual Included
testo ScaleAssist Included
Humidity measurement with humidity measuring instrument Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)
Electrical measurement with clamp meter Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately)
Imager equipment
Full screen mode Included
JPEG storage Included
Video streaming via wireless LAN with testo Thermography App; via USB
Voice recording Included
Laser Laser marker
SiteRecognition Included
Standard lens 30° x 23°
Digital camera Included
Interface USB 2.0; USB-C
WLAN Connectivity Communication with the testo Thermography App/ wireless module BT/WLAN
Bluetooth Headset for voice annotations, transfer of readings from testo 605i thermohygrometer, testo 770-3 clamp meter (optional)
Imager storage
File format image .bmt; .jpg; software export option in .bmp; .jpg; .png; .csv; .xls
Storage device Internal Memory (2.8 GB)
Power supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Operating time ≥ 5 hr
Charging options In instrument / USB charger
Power supply yes
Ambient Condition
Air humidity 20 to 80 %RH non-condensing
Housing protection class IP54
Vibration 2G
Storage temperature -22.0° to 140.0 °F / -30 to +60 °C
Operating temperature 5.0° to 122.0 °F / -15 to +50 °C
Physical specification
Tripod mounting 1/4" - 20UNC; carrying strap
Housing PC - ABS
Weight 29.1 oz. / 824 g
Dimensions 7 x 4 x 9 in. / 171 x 95 x 236 mm
PC software
System requirements Windows® 10; Windows 8; Windows 7

Spare rechargeable battery for thermal imager
General technical data
Weight 4.20 oz. / 119 g
Dimensions 1 x 1 x 6 in. (LxWxH) / 20 x 24 x 140 mm (LxWxH)
Product colour Black

Desktop charger holds two batteries
General technical data
Weight 13.58 oz. / 385 g
Dimensions 3 x 4 x 3 in. (LxWxH) / 80 x 90 x 75 mm (LxWxH)
Cable length 3.281 ft. / 1 m
Product colour black/orange
