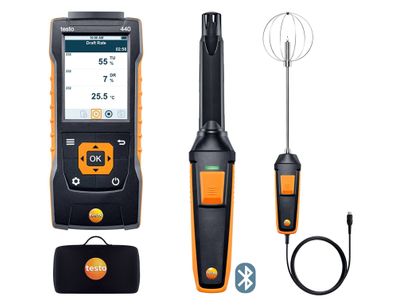

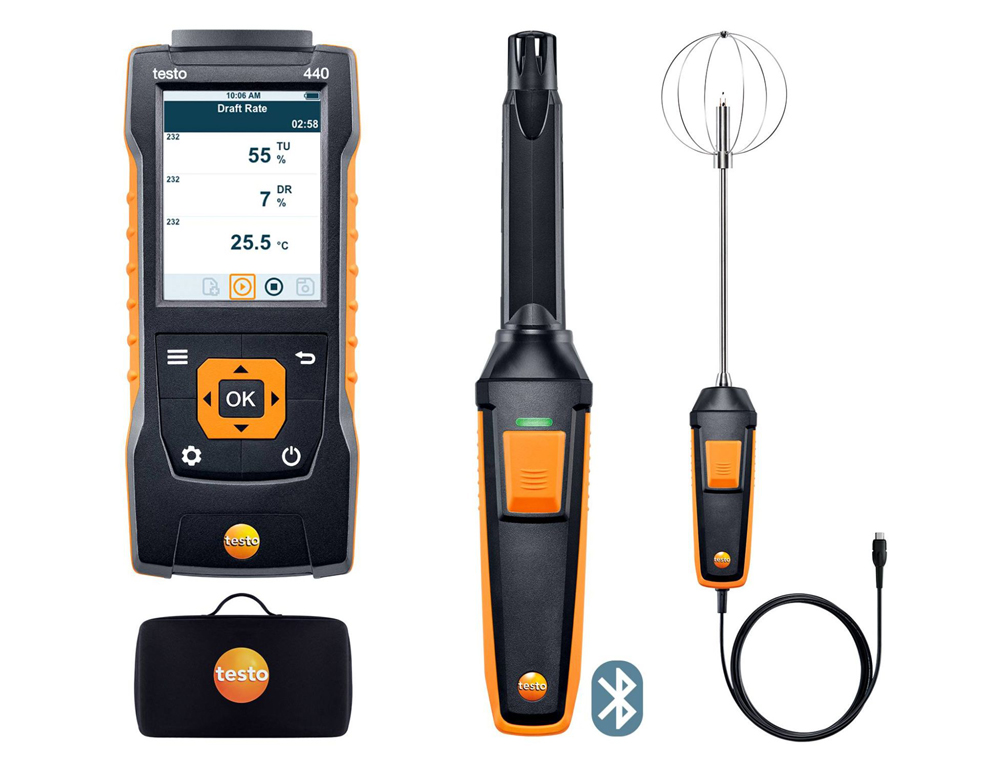

0563 4408 440 Indoor Comfort ComboKit with Bluetooth by Testo

With the testo 440 comfort level ComboKit with Bluetooth®, all IAQ-related parameters can be measured and documented wirelessly. The testo 440 air velocity & IAQ measuring instrument recognizes probes automatically, and its structured measurement menus simplify the adjustment of air conditioning and ventilation systems. In addition to a Bluetooth® probe, a wired probe and a thermocouple Type K temperature probe can also be connected to the measuring instrument.

The versatile Bluetooth® handle allows the connection of many different wireless probe heads for all applications. In addition to this, the kit contains a CO₂ probe head, a wired degree of turbulence probe and a storage case.

Structured measurement menu for long-term measurements
Parallel determination of CO₂ concentration, air humidity, air temperature and degree of turbulence
Calculation of wet bulb temperature, dewpoint and absolute humidity
Determination of degree of turbulence and draught risk according to EN ISO 7730 / ASHRAE 55
Internal data storage and USB port for data export
Can be extended with a large portfolio of digital probes

Kit Includes:

testo 440 air velocity & IAQ measuring instrument, incl. 3x AA batteries, USB cable and calibration protocol (0560 4401)
CO2 probe with Bluetooth®, including temperature and humidity sensor (consisting of CO₂ probe head and Bluetooth® handle); 4x AA batteries, table stand and calibration protocol (0632 1551)
Turbulence probe with fixed cable (cable length 1.4 m) and calibration protocol (0628 0152)
Combi-case for testo 440 and multiple probes (0516 4401)

Specifications

testo 440 - Air velocity and IAQ measuring instrument

Temperature - NTC	Measuring range	-40° to 302 °F / -40 to +150 °C
	Accuracy	±0.7 °F (-40° to -13.2 °F) / ±0.4 °C (-40 to -25.1 °C) ±0.5 °F (-13° to 166.8 °F) / ±0.3 °C (-25 to +74.9 °C) ±0.7 °F (167° to 211.8 °F) / ±0.4 °C (+75 to +99.9 °C) ±0.5 % of mv (Remaining Range)
	Resolution	0.1 °F / 0.1 °C
Temperature - Type K TC	Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
	Accuracy	±(0.5 °F + 0.3 % of mv) / ±(0.3 °C + 0.3 % of mv)
	Resolution	0.1 °F / 0.1 °C
Weight		8.8 oz. / 250 g
Dimensions		6.1 x 2.6 x 1.3 in. / 154 x 65 x 32 mm
Operating temperature		-4.0° to 122.0 °F / -20 to +50 °C
Product colour		black/orange
Connectable probes		1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or testo Smart Probe, 1 x Temperature TC Type K
Battery type		3 x AA 1.5 V
Battery life		12 h (typically vane measurement)
Interface		Bluetooth®; USB
Storage temperature		-4.0° to 122.0 °F / -20 to +50 °C

CO₂ probe (digital) - with Bluetooth® including temperature and humidity sensor

Temperature - NTC	Measuring range	32° to 122 °F / 0 to +50 °C
	Accuracy	±0.9 °F / ±0.5 °C
	Resolution	0.1 °F / 0.1 °C
Humidity - Capacitive	Measuring range	5 to 95 %rH
	Accuracy	±3 %rH (10 to 35 %rH) ±2 %rH (35 to 65 %rH) ±3 %rH (65 to 90 %rH) ±5 %rH (Remaining Range) ±0.06 %rF/K (32° to +122 °F) / ±0.06 %RH/K (0 to +50 °C)
	Resolution	0.1 %rH
Absolute Pressure	Measuring range	+280 to +440 InH₂O / +700 to +1100 hPa
	Accuracy	±1.2 InH₂O / ±3.0 hPa
	Resolution	0.1 InH₂O / 0.1 hPa
Ambient CO₂	Measuring range	0 to 10000 ppm
	Accuracy	±(50 ppm + 3 % of mv) (0 to 5000 ppm) ±(100 ppm + 5 % of mv) (5001 to 10000 ppm)
	Resolution	1 ppm
Storage temperature		-4° to 140 °F / -20 to +60 °C
Weight		6.9 oz. / 195 g
Dimensions		11.6 x 2.0 x 1.6 in. / 295 x 50 x 40 mm
Operating temperature		23° to 122 °F / -5 to +50 °C
Length probe shaft		5.118 in. / 130 mm
Probe head diameter		1.181 in. / 30 mm
Product colour		black/orange
Battery type		4 x AA batteries
Battery life		21,5 h
Data transfer		Bluetooth®
Radio range		65.616 ft. / 20 m

Turbulence probe (digital) - wired

Temperature - NTC	Measuring range	32° to 122 °F / 0 to +50 °C
	Accuracy	±0.9 °F / ±0.5 °C
	Resolution	0.1 °F / 0.1 °C
Absolute Pressure	Measuring range	+280 to +440 InH₂O / +700 to +1100 hPa
	Accuracy	±1.2 InH₂O / ±3.0 hPa
	Resolution	0.1 InH₂O / 0.1 hPa
Velocity - Hot wire anemometer	Measuring range	0 to 984 fpm / 0 to 5 m/s
	Accuracy	±(5.91 fpm + 4 % of mv) / ±(0.03 m/s + 4 % of mv)
	Resolution	1.97 fpm / 0.01 m/s
Storage temperature		-4° to 140 °F / -20 to +60 °C
Weight		8.8 oz. / 250 g
Dimensions		15.7 x 3.5 x 3.5 in. / 400 x 90 x 90 mm
Operating temperature		32° to 122 °F / 0 to +50 °C
Cable length		4.593 ft. / 1.4 m
Probe head diameter		32.283 in. / 820 mm
Product colour		black/orange
Standards		EN ISO 7730 / ASHRAE 55

Combi-case - for testo 440 and multiple probes

Weight		49.4 oz. / 1400 g
Dimensions		20.3 x 5.3 x 10.1 in. / 516 x 135 x 256 mm
Operating temperature		-4° to 158 °F / -20 to +70 °C
Product colour		Black
