Testo 545 Digital Lux Meter with App Connection - 0563 1545

Testo 545 Digital Lux Meter with App Connection - 0563 1545

$475.00

0563 1545 545 Digital Lux Meter with App Connection by Testo

Illuminance is a decisive factor for productivity, well-being and health, especially in workplaces. Light sources that are too bright dazzle, while those that are too dark can lead to concentration problems and headaches.

With the Lux meter testo 545 you can measure the illuminance of all common light sources - quickly, easily and precisely. The measuring instrument is compatible with almost all commercially available LEDs and thus ensures you a wide range of applications.

By automatically calculating the time and point average value, the Lux meter shows you all relevant information at a glance.

The testo 545 is perfectly complemented by the testo Smart App. This not only allows you to configure the measuring instrument, display and store the measured values, and document them in a particularly convenient way. The App also turns your smartphone into a second display.

  • Simple, fast and precise measurement of illuminance (Lux) according to the V-lambda curve for all common light sources
  • Wide range of applications due to LED compatibility (except single-colour blue LED)
  • Fast in-app configuration, graph history, second screen and measurement data memory in the testo Smart App
  • Audible alarm sounds if a limit value is exceeded
  • Timed and point mean value calculation

Includes:

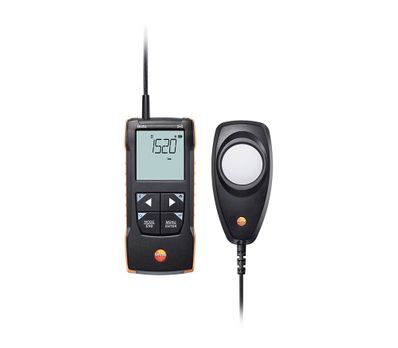

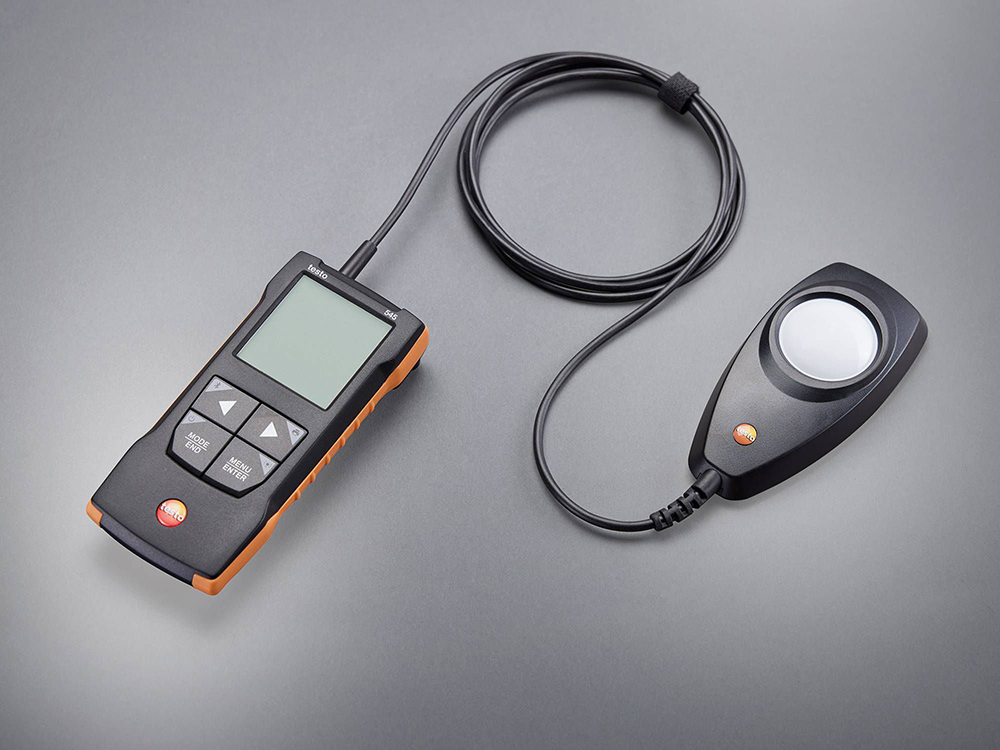

testo 545, Lux measuring instrument with App connection and audible alarm, incl. transport bag, calibration protocol and 3 x AA batteries

Sensor type Silicon photodiode
Measuring range 0 to 100,000 lux
Accuracy ±1 digit Class C, corresponding to DIN 5032-7 / EN 13032-1, Appendix B
f1 = 6% = V(Lambda) adjustment
f2 = 5% = cos-true evaluation
Total ≤15%
±3% of m.v. ±1 digit
Resolution 0.1 Lux (< 10,000 Lux)
1 Lux (≥ 10,000 Lux)
General technical data
Operating temperature Measuring instrument: -10 to +50 °C
Probe: 0 to +50 °C
Storage temperature -20 to +50 °C
Battery type 3 x AA
Battery life 70 h
Dimensions Measuring instrument: 149 x 60 x 28 mm
Probe: 134 x 54 x 23 mm
Cable length 1.4 m
Weight 288 g
Protection class Measuring instrument: IP 40
Probe: IP20
Housing material ABS + PC / TPE
