Testo 104-IR Folding, Waterproof Thermometer - 0560 1040 01
Item #:
0560-1040-01
Brand:
Testo
Share this product:
0560 1040 01 104-IR Folding, Waterproof Thermometer by Testo

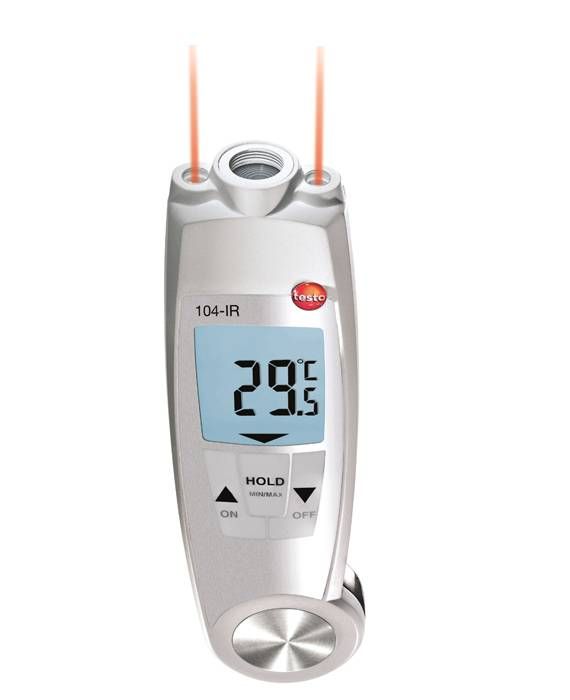

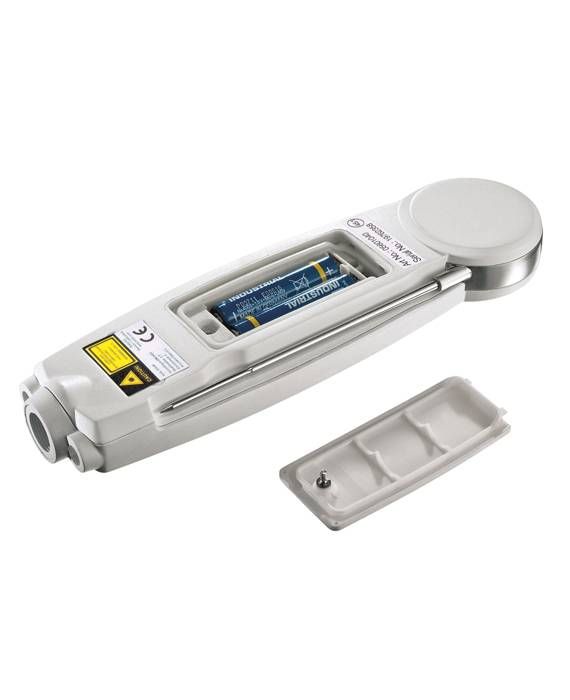

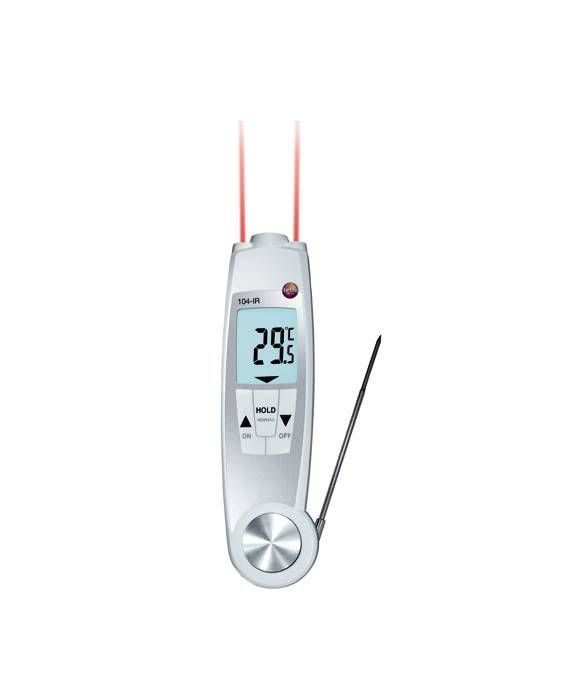

The testo 104-IR is a waterproof (IP65) penetration thermometer combined with an infrared sensor for non-contact temperature measurement. It can be used for various applications in the food sector. The precise testo 104-IR scans the surface temperature of individual foods or entire pallets from a distance. If a limit value is exceeded or undershot, the hinged penetration probe is also able to measure the core temperature.

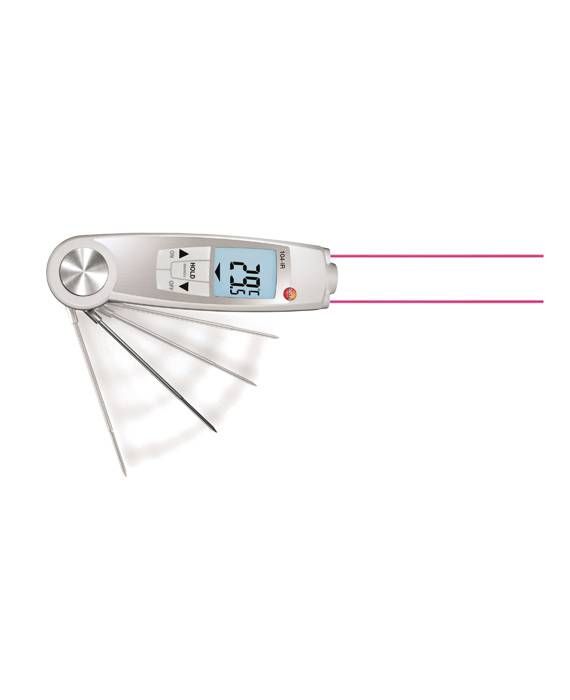

The penetration probe is always securely stowed on the instrument itself. As soon as the probe is opened up, the display is activated, and the IR measurement starts at the touch of a button. Thanks to the large display, it is easy to read the measurement result.
Its few buttons are ergonomically placed and user friendly. No time-consuming measurements, no complicated handling, no compromises. For quick, accurate and convenient temperature measurements anywhere at anytime, the 104-IR thermometer is unmatched in value and quality.
- One product, two purposes: Infrared and penetration thermometer
- Robust yet compact design with durable folding joint
- Precise 2-point laser with 10:1 optics displays the exact measuring range and guarantees error-free measurements
- Waterproof (IP65) and HACCP-compliant
Includes:
testo 104-IR waterproof folding food thermometer, user guide, calibration protocol, adhesive color strips, batteries
Temperature - NTC | |
Measuring range | -58 to 482 °F (-50 to +250 °C) |
Accuracy ±1 digit | ±1.8 °F (-58 to -22 °F) / ±1 °C (-50 to -30 °C) ±0.9 °F (-22 to 212 °F) / ±0.5 °C (-30 to +100 °C) ±1% of m.v. (remaining range) |
Resolution | 0.1 °F (0.1 °C) |
t99 | 10 seconds (measured in moving liquid) |
Measurement rate | 0.5 seconds |
Infrared | |
Measuring range | -22 to 482 °F (-30 to +250 °C) |
Accuracy ±1 digit | ±4.5 °F (-22 to -4 °F ) / ±2.5 °C (-30 to -20 °C ) ±3.6 °F (-4 to 32 °F ) / ±2 °C (-20 to 0 °C ) ±1.8 °F or ±1.5% of m.v. (remaining range) |
Resolution | 0.1 °F (0.1 °C) |
Measurement rate | 0.5 seconds |
Lens | 10:1 + opening diameter of the sensor: 0.47 in. (12 mm) |
Meas. spot marking | 2 point laser |
Spectral range | 8 to 14 μm |
Emissivity | 0.10 to 1.00 (0.01 steps) |
Laser marking | on / off |
General technical data | |
Measurement value | temperature °C/°F/°R |
Measurement mode | Hold or auto hold (immersion probe) |
Operating temperature | -4 to 122 °F (-20 to +50 °C) |
Storage temperature | -22 to 122 °F (-30 to +50 °C) |
Battery type | 2 AAA batteries |
Battery life | 10 hours |
Display | LCD, single line, illuminated, with status line (°C,°F,°R, battery, hold/auto hold, min, max, laser, measurement, emissivity) |
Protection class | IP65 |
Dimensions | 11.06 X 1.89 X 0.83 in. (probe folded out) 7.01 x 1.89 x 0.83 in. (probe not folded out) |
Housing material | ABS / TPE / PC, diecast zinc, stainless steel |
Weight | 7 oz. (197 g) (incl. batteries) |
Warranty | 2 years |
