Testo 6351 Differential Pressure Transmitter - standard housing plastic
Item #:
XXYY-0555-6351
Brand:
Testo
Share this product:

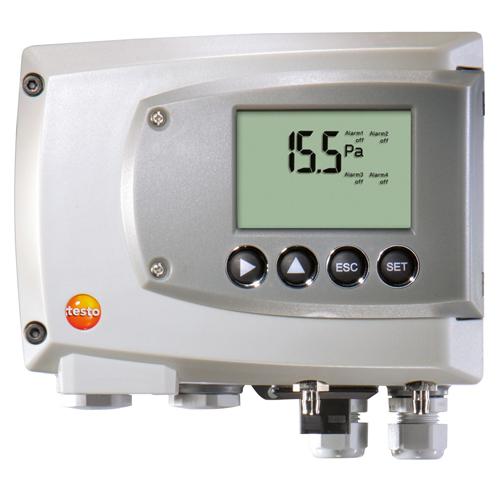

6351 Differential Pressure Transmitter - standard housing plastic by Testo
The differential pressure transmitter testo 6351 was developed specially for monitoring differential pressure in the measuring range from 50 Pa to 2000 hPa. In cleanroom technology, the maintenance of positive pressure prevents the entry of contaminated air. In order to keep the cleanroom conditions constant, the transmitter additionally calculates the parameters volume flow and flow velocity from the measured differential pressure.
The testo 6351 is particularly outstanding thanks to the automatioc zero-point adjustment which ensures high accuracy and long-term stability.
The integrated self-monitoring and early warning function also guarantees the operator high system availability.
- Measurement of differential pressure, flow velocity and volume flow
- Automatic zero-point adjustment guarantees high, temperature-independent accuracy and long-term stability
- Plastic housing
- Display with multi-language operating menu and optical alarm display
- Ethernet, relay and analog outputs allow optimum integration into individual automation systems
- Self-monitoring of the transmitter and early warning function guarantee high system availablity
- The P2A software for parameterization, adjustment and analysis saves time and costs in commissioning and maintenance
- Scalability of ±50 percent of the measuring range final value and free scalability within the measuring range
- Configurable alarm management with adjustable response delay and alarm acknowledgement
Parameters |
|||
| Differential pressure | |||
| Measuring range | 0 to 50 Pa | -50 to 50 Pa | |
| 0 to 100 Pa | -100 to 100 Pa | ||
| 0 to 500 Pa | -500 to 500 Pa | ||
| 0 to 10 hPa | -10 to 10 hPa | ||
| 0 to 50 hPa | -50 to 50 hPa | ||
| 0 to 100 hPa | -100 to 100 hPa | ||
| 0 to 500 hPa | -500 to 500 hPa | ||
| 0 to 1000 hPa | -1000 to 1000 hPa | ||
| 0 to 2000 hPa | -2000 to 2000 hPa | ||
| Measurement uncertainty | ±0,8% of measurement range final
value
±0.3 Pa Temperature gain drift: 0.02% of measuring range per Kelvin deviaton from nominal temperature 22 °C Zero point drift: 0% (thanks to cyclic zero-point adjustment) |
||
| Selectable units | Differential pressure in Pa, hPa, kPa,
mbar, bar, mmH2O, kg/cm2, PSI, inch
HG, inch H2O Calculated variables: Volume flow in m3/h, l/min, Nm3/h, Nl/min Flow velocity in m/s, ft/min |
||
| Sensor | Piezoresistive sensor | ||
| Autom. Zero-point adjustment | via magnetic valve Frequency adjustable: 15 sec, 30 sec, 1 min, 5 min, 10 min |
||
| Overload capacity | Measuring range | Overload | |
| 0 to 50 Pa | 20000 Pa | ||
| 0 to 100 Pa | 20000 Pa | ||
| 0 to 500 Pa | 20000 Pa | ||
| 0 to 10 hPa | 200 hPa | ||
| 0 to 50 hPa | 750 hPa | ||
| 0 to 100 hPa | 750 hPa | ||
| 0 to 500 hPa | 2500 hPa | ||
| 0 to 1000 hPa | 2500 hPa | ||
| 0 to 2000 hPa | 2500 hPa | ||
| -50 to 50 Pa | 20000 Pa | ||
| -100 to 100 Pa | 20000 Pa | ||
| -500 to 500 Pa | 20000 Pa | ||
| -10 to 10 hPa | 200 hPa | ||
| -50 to 50 hPa | 750 hPa | ||
| -100 to 100 hPa | 750 hPa | ||
| -500 to 500 hPa | 2500 hPa | ||
| -1000 to 1000 hPa | 2500 hPa | ||
| -2000 to 2000 hPa | 2500 hPa | ||
Inputs/outputs |
|||
| Analog outputs | |||
| Quantity | 1 | ||
| Output type | 0/4 to 20 mA (4-wire) (24 VAC/DC) 0 to 1/5 to 10 V (4-wire) (24 VAC/DC) |
||
| Scaling | Differential pressure: scalable ±50% of measuring range final value; freely scalable within measuring range |
||
| Meas. cycle | 1/sec | ||
| Resolution | 12 bit | ||
| Max. load | max. 500 Ω | ||
| Other outputs | |||
| Ethernet | Optional with Ethernet module | ||
| Relay | Optional: 4 relays (free allocation to measurement channel or as collective alarm in operating menu/P2A), up to 250 VAC/3A (NO or NC) | ||
| Digital | Mini-DIN for P2A software | ||
| Supply | |||
| Voltage supply | 20 to 30 VAC/DC, 300 mA current consumption, galvanically separate signal and supply line | ||
General technical data |
|||
| Model | |||
| Material | Plastic housing | ||
| Dimensions | 162 x 122 x 77 mm | ||
| Weight | 0.7 kg; optional: Ethernet intermediary layer 0.6 kg | ||
| Connection nipple | Ø 6 mm --> suitable hoses 4 mm + 4.8 mm | ||
| Display | |||
| Display |
Optional: 3-line LCD with multi-language operating menu | ||
| Resolution |
Measuring range | Resolution | |
| 0 to 50 Pa | 0.1 Pa | ||
| 0 to 100 Pa | 0.1 Pa | ||
| 0 to 500 Pa | 0.1 Pa | ||
| 0 to 10 hPa | 0.01 hPa | ||
| 0 to 50 hPa | 0.01 hPa | ||
| 0 to 100 hPa | 0.1 hPa | ||
| 0 to 500 hPa | 0.1 hPa | ||
| 0 to 1000 hPa | 1 hPa | ||
| 0 to 2000 hPa | 1 hPa | ||
| -50 to 50 Pa | 0.1 Pa | ||
| -100 to 100 Pa | 0.1 Pa | ||
| -500 to 500 Pa | 0.1 Pa | ||
| -10 to 10 hPa | 0.01 hPa | ||
| -50 to 50 hPa | 0.01 hPa | ||
| -100 to 100 hPa | 0.1 hPa | ||
| -500 to 500 hPa | 0.1 hPa | ||
| -1000 to 1000 hPa | 1 hPa | ||
| -2000 to 2000 hPa | 1 hPa | ||
| Miscellaneous | |||
| Protection class | IP 65 | ||
| EMC | EU guideline 2004/108/EC | ||
| Operating conditions | |||
| Operating temperature | -5 to +50 °C / +23 to +122 °F | ||
| Storage temperature | -20 to +60 °C / -4 to +140 °F | ||
| Process temperature | -20 to +65 °C / -4 to +149 °F | ||
