TPI 605 Digital Vacuum Gauge
Item #:
TPI-605
Brand:
Test Products International
Share this product:

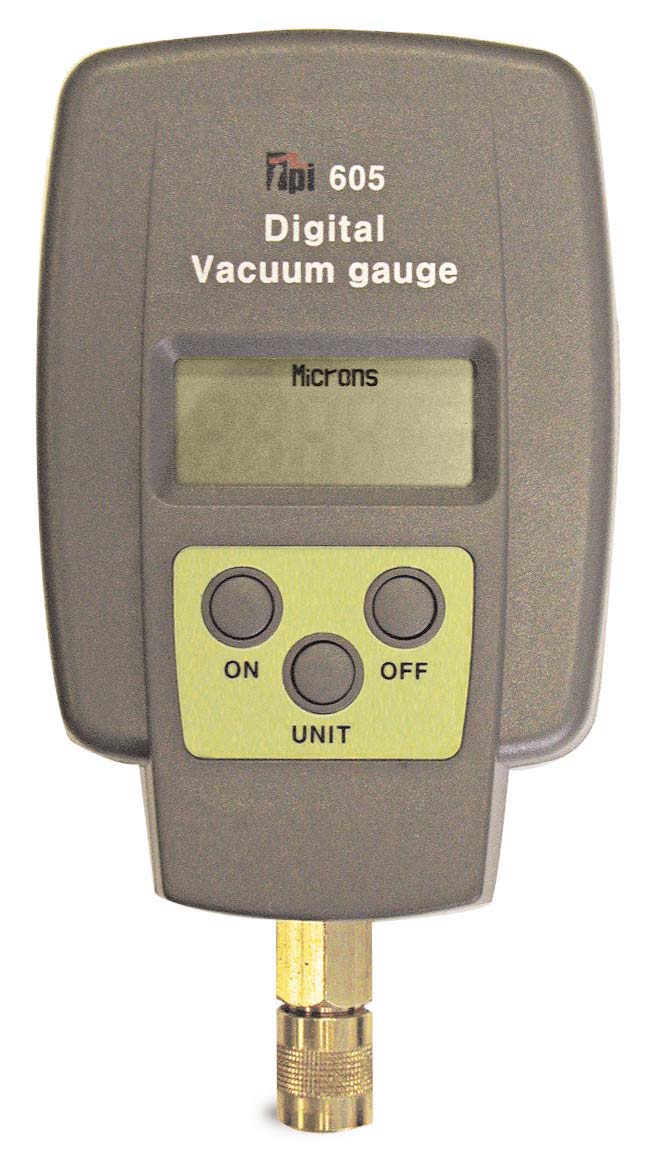

605 Digital Vacuum Gauge by Test Products International
Single input vacuum gauge. 12,000 to 15 micron measurement range. 300 PSI over pressure. A safer instrument for your job.
The 605 vacuum gauge measures vacuum in Microns for accurate evacuation of refrigeration systems. Please follow manufacturers recommendations on all HVAC equipment.
Features:
- Single input with 12000 to 15 micron range.
- Seven units of measure: Microns, PSI, InHg, mBar, Pascals, Torr, mTorr.
- Display: 5 digit.
- Auto Off: Conserve battery power
- Built in hanging hook and back magnets.
| Measurement Range | 12000 to 15 micron |
| Display | 5 Digit LCD |
| Resolution (max) | 1 micron |
| Accuracy | (±10% of reading + 10 digits) |
| Functions | Selectable units of measure |
| Units of Measure | 7 Units (Microns, PSI, InHg, mBar, Pascals, Torr, mTorr) |
| Battery Type | 9V alkaline |
| Battery Life | 200 hours (Typical) |
| Auto Power Off | 10 minutes when measurement is above 12000 microns |
