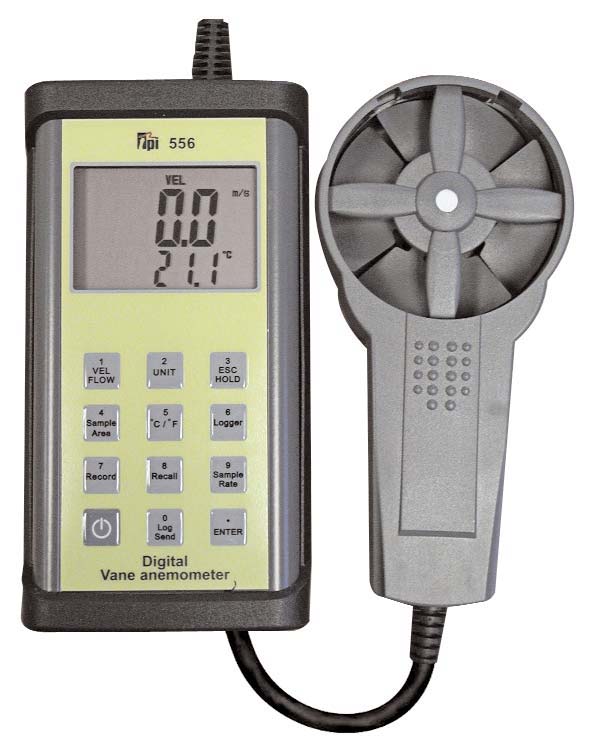

TPI 556C1 Digital Air Velocity / Air Flow Meter

556C1 Digital Air Velocity / Air Flow Meter by Test Products International

Digital vane air velocity, calculate CFM and temperature. The 556 Digital Air Velocity Meter is a state of the art, easy to use instrument designed to provide temperature and air velocity readings as well as calculating CFM.

The 556 Digital Air Velocity Meter is a state of the art, easy to use instrument designed to provide temperature and air velocity readings as well as calculating CFM. The instrument is ruggedly constructed and comes with a 3 Year Guarantee.

Features

• Measure air velocity, air flow and temperature
• Five units of measure for air velocity: (m/s, km/hr, mile/hr, knots, ft/min)
• Two units of measure for air flow: (cfm, cmm)
• Send real time and logged data to a PC via optional A500 interface cable
• Four digit dual line display simultaneously shows air flow and temperature
• Data record displays minimum, maximum and average readings
• Data log up to 1000 readings in 1 second to 999 second intervals

Applications

• Air velocity measurements in heating, ventilation and air conditioning systems
• Air duct analysis
• Fume hoods
• Floor registers
• Exhaust grills

Standard Accessories

• TPI 556 Instrument
• Rubber Boot
• Soft Carrying Case
• Batteries
• Instruction Manual

Optional Accessories

• Serial Computer Interface RS232
