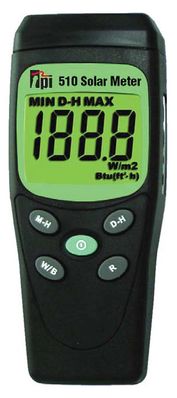

TPI 510 Solar Irradiance Meter
Item #:
TPI-510
Brand:
Test Products International
Share this product:
510 Solar Irradiance Meter by Test Products International
The TPI 510 is an easy to use, solar irradiance meter for measurement of not only solar radiation, but all measureable light sources including all visible light. The TPI Solar Meter is state of the art and easy to use. It is designed to measure solar power in W/m2 or BTU (ft2*h).
Features
- Measure solar radiation (irradiance)
- Displays results in W/m2 or BTU
- 0 to 1999 W/m2 (0 to 634 BTU) range
- Min / Max and Data hold functions
- Convenient, no need to adjust, data displayed clearly
- Measurable light sources, including all visible light
- Overload display "OL" when measurement is out of range
- Select either W/m2 or BTU / (ft2*h) units
Applications
- Use to find the optimal angle of inclination for installing solar panels
- Measure light intensity through windows
- Determine the effectiveness of solar film / window tint
- Suitable for measuring the effectiveness of solar film
- Car windows light intensity measurement
- Optimal incident angle for solar panels
- Measurement of the sun’s transmission through transparent and film glass
| Range | 1999W/m2 / 634BTU/(ft2*h) |
| Accuracy | Typically within ±10W/m2 [±3BTU / (ft2*h)] or ±5%, whichever is greater in sunlight; Additional temperature induced error ±0.38W / m2 / °C [±0.12BTU / (ft2*h) / °C] from 25°C |
| Display | 3-1/2 digits LCD with maximum reading 1999 |
| Sampling Time | Approx. 0.25 second |
| Resolution | 0.1W/m2 / 0.1BTU / (ft2*h) |
| Over-Input | Display shows" OL". |
| Operating Temp. & RH | 41°F~104°F (5°C ~ 40°C), below 80% RH. |
| Storage Temp. & RH | 14°F~140°F (-10°C ~ 60°C), below 70% RH. |
| Dimensions & Weight | 5.1 x 2.4 x 1.5" 5.3oz (132 x 60 x 38 mm, approx. 150g) |
| EMC | This instrument is EMC-compliant and has undergone compatibility tests according to EN61326 (1997) + A1 (1998) + A2 (2001). |
| Accessories | User Manual A9V battery(NEDA 1604 IEC 6F 22 JIS 006P)*1 Carrying Case |
