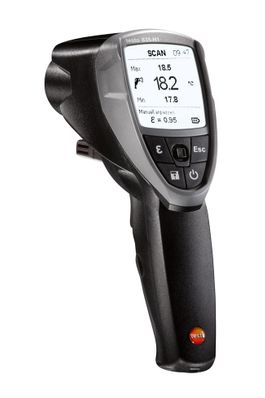

Testo 835-H1 Moisture Module IR Thermometer, 4-point laser sighting, data logging, external probe input & humidity module - 0560 8353
Item #:
0560-8353
Brand:
Testo
Share this product:
0560 8353 835-H1 Moisture Module IR Thermometer, 4-point laser sighting, data logging, external probe input & humidity module by Testo
Take advantage of the benefits the testo 835 series has to offer, in virtually all sectors of trade and industry: e.g. monitoring wall temperature and humidity, inspecting air conditioning and ventilation systems, the maintenance of industrial systems or the quality control of industrially manufactured products.
Testo infrared measuring technology, which delivers firstclass results even at long distance, is particularly helpful when monitoring the temperature of objects that are small, moving, difficult to access or extremely hot. The many features increase the room for manoeuvre, for example in the building trade when carrying out surface moisture measurement via infrared, or in the metal, glass and ceramics industry when measuring temperatures up to 1500 °C. So you can be certain of having everything under control and of safeguarding your standards of quality at all times.
- Measure safely and accurately even at high temperatures
- 4-point laser shows the exact measuring range, preventing incorrect measurements
- Safe measurements from a long distance, thanks to 50:1 optics
- Integrated emissivity measurement for absolute measuring reliability
- Patented surface moisture measurement (testo 835-H1)
- Convenient menu guidance with icons and joystick
- Measuring value and location memory, and data analysis on the PC with free PC software "EasyClimate"
Probe type Infrared | Meas. range: -30 to +600 °C Accuracy: ±2.5 °C (-30.0 to -20.1 °C ); ±1.5 °C (-20.0 to -0.1 °C ); ±1.0 °C (+0.0 to +99.9 °C ) ±1% of mv (remaining range ) Resolution: 0.1 °C Spectral range: 8 to 14 μm Optics: 50:1 (regarding the distance of 2.0 m to measuring object typically) + opening diameter of the sensor (24 mm) Meas. spot marking: 4 point laser |
Probe type Type K | Meas. range: -50 to +600 °C Accuracy: ±(-0.5 °C +0.5% of mv) Resolution: 0.1 °C |
Probe type humid. sensor, cap. | Meas. range: 0 to 100 %RH Accuracy: ±2 %RH; ±0.5 °C Resolution: 0.1 °C; 0.1 %RH; 0.1 °Ctd |
Emissivity | 0.10 to 1.00 (steps 0.01) |
Emissivity table | 20 values storable |
Laser spot | On / off |
Memory | 200 values storable |
Alarm (upper/lower limit) | IR temperature, TC temperature |
Alarm signal | audible, optical |
Oper. temp. | -20 to +50 °C |
Storage temp. | -30 to +50 °C |
Material/Housing | ABS + PC |
Dimensions | 193 x 166 x 63 mm |
Weight | 514 g |
Battery type | 3 batteries Type AA (or USB operating with PC-Software) |
Battery life | 25 h (typical 25°C without laser and backlight) 10 h (typical 25°C without backlight) |
Display | Dot matrix |
Auto-Off (disabled for continuous measurement and USB connection) | Backlight: 30 s Instrument: 120 s |
Standards | EN 61326-1:2006 |
Warranty | 2 years |
