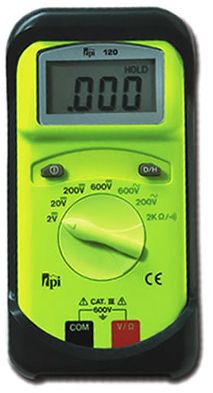

TPI 120 Compact, Manual Ranging, Basic DCV 0.5% Accuracy DMM

120 Compact, Manual Ranging, Basic DCV 0.5% Accuracy DMM by Test Products International

When using the Model 120, press the DATA-H button at any time on any function or range to freeze the reading on the LCD display. This function is very useful when measuring in locations where the display is difficult to read.

Features:

• Safety: Meets CE and IEC 1010 requirements. UL Listed.
• Large LCD: Easy to read at all angles and the majority of lighting levels.
• Data Hold: Freeze readings on the display.
• Rubber Boot: Added protection when the instrument is dropped. (120NB does not include boot.)
• Versatile: Use accessories like a carbon monoxide attachment to expand the capabilities of the 120.
• 2,000 count display
• 0 to 600 volts AC and DC
• 0 to 2,000 ohms
• Audible continuity
• 10 MOHM internal impedance
• 0.5 % DCV basic accuracy
• cULus 61010-1
• CAT II - 1000V, CAT III - 600V

HVAC/R Applications:

• Line voltage
• Control circuit voltage
• Heating element resistance (continuity)
• Compressor winding resistance
• Contactor and relay coil resistance
• Continuity of wiring

Electrical Applications:

• Measure line voltage
• Continuity of circuit breakers
• Voltage of direct drive DC motors.

The 120 comes complete with the following accessories:

• 120 Instrument
• Rubber Boot
• Test Lead Set
• 9V Battery
• Instruction Manual
